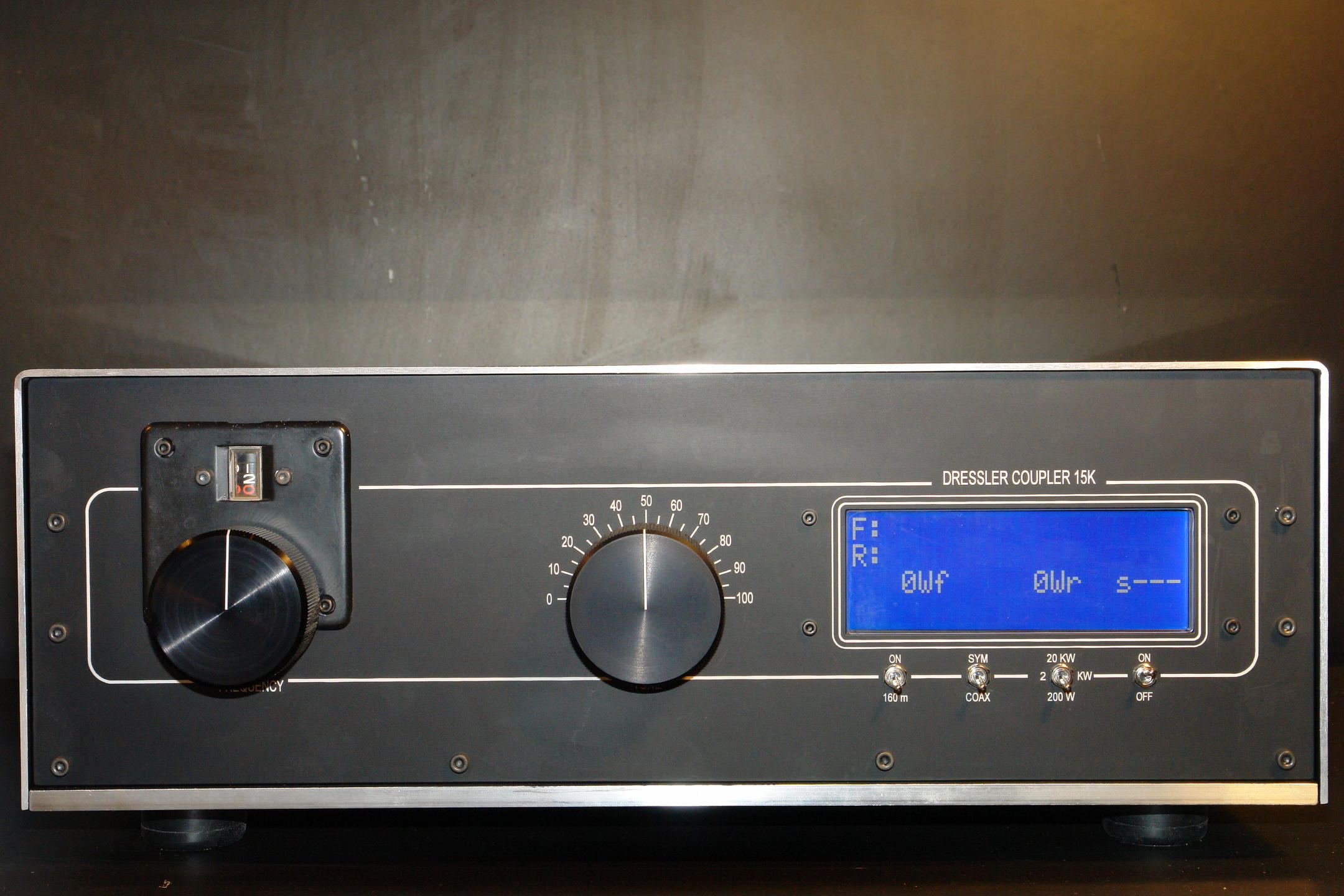

DC9DZ: Project Tsunami – Coupler 15K

Data of DRESSLER Coupler-15K

Frequency range 1.8 MHz to 29.7 MHz
Max. Input power SSB: 15 kW / CW: 10 kW / RTTY: 5 kW
Impedance match range SSB CW RTTY Ohms
15 kW
10 kW
5 kW
10 kW
7 kW
4 kW
5 kW
3 kW
2 kW
20 – 2000
15 – 2500
10 – 3000
1:4 Guanella Balun rated for 15.5 kW RTTY, Frequency range: 160 m - 20 m, max. working voltage: 10 kV
Option: External Balun rated for 15 kW RTTY, Frequency range: 20 m - 10 m
Display analog Forward power / Reflected power, Power range: 200 W / 2 kW / 20 kW
Display digital Forward power / Reflected power / SWR
Housing High quality black eloxial aluminia
Internal Power supply 230 V ac
Dimension 470w x 159.5h x 460d mm³
Weight 25.5 kg
Price EUR 3880
Option External Balun for 20 m - 10 m: EUR 680
